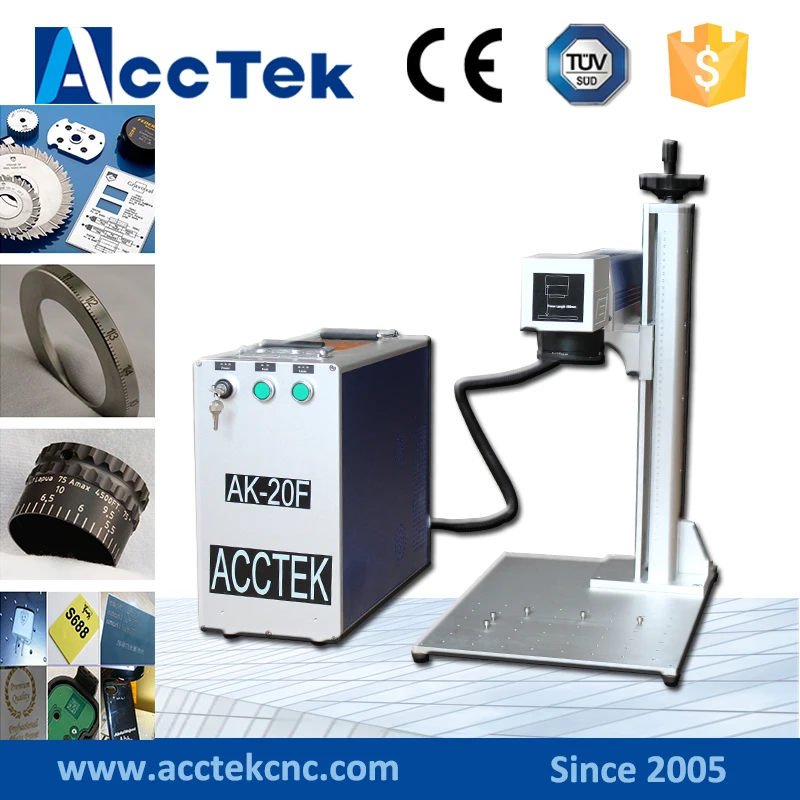

2019 new mode 1.5 Years warranty high precision portable 20w fiber laser marking machine for metal and nonmetal
Technical Parameters of Fiber Laser Marking Machine
| Model | AK20F |
| Laser power | 10W/20W/30W/50W |
| Laser type | Fiber laser |
| Machine power | 500W |
| Minimum line width | 0.015mm |
| Wave length | 1064nm |
| Repetition rate | 20KHz-100KHz |
| Marking speed | 7000mm/s |
| Marking scope | 110*110/200*200/300*300mm (optional) |
| Operating voltage | AC220±10% 50Hz / AC110±10% 60Hz |
| Cooling type | Air cooling and protection system |
| Acceptable graphic format | PLT, PCX, DXF, BMP, AI |
| Operating temperature range | 15-35°C |
| Minimum character | 0.15mm |
| Repeat position accuracy | ±0.001mm |
| Net weight | 50KG |
Advantage
1. This industrial marking machine enjoys an excellent manual focusing system and user-friendly operating structure.
2. The imported fiber laser is protected with an isolated layer, effectively lifting its stability and extending its service life.
3. The laser beam is top-quality consistently both inside and outside, much more excellent than those of traditional laser markers.
4. The laser beam TEM00 mode of the fiber laser has a less than 200um focus spot diameter and 1/4 more expanded angle than YAG-DP, resulting in stunning performance in marking small and subtle labels.
5. The laser has a high rate of converting input electric power into output light power, leading to less than 500W electric consumption in total, accounting for 1/10 of the electric consumption of YAG laser.
6. The fiber laser marking machine with a small body, a long service life, and a maintenance-free guarantee is suitable for any working environment.
7. Its performance in fast-speed marking is remarkable, tripling or even quadrupling the marking speed of traditional ones.
8. It supports various marking software and formats like CorelDraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP, SHX, TTF, etc, and has auto-coding ability for serial number, batch number, date, bar code, etc.

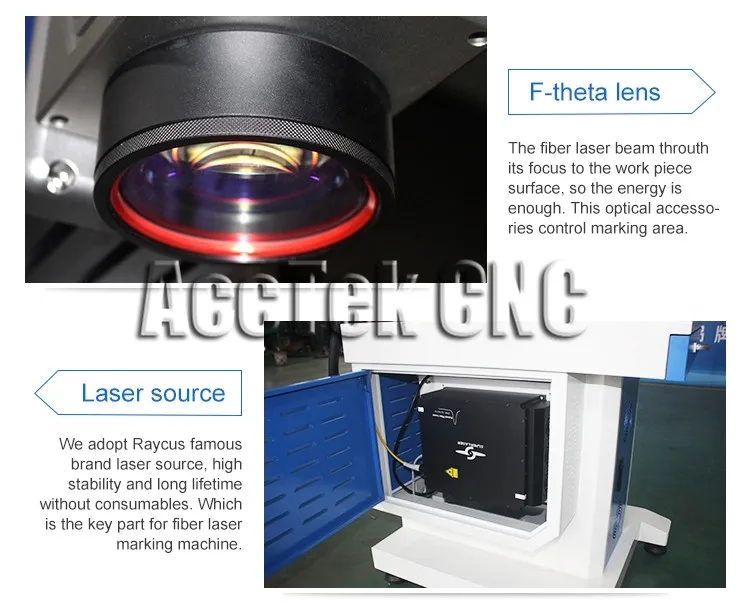

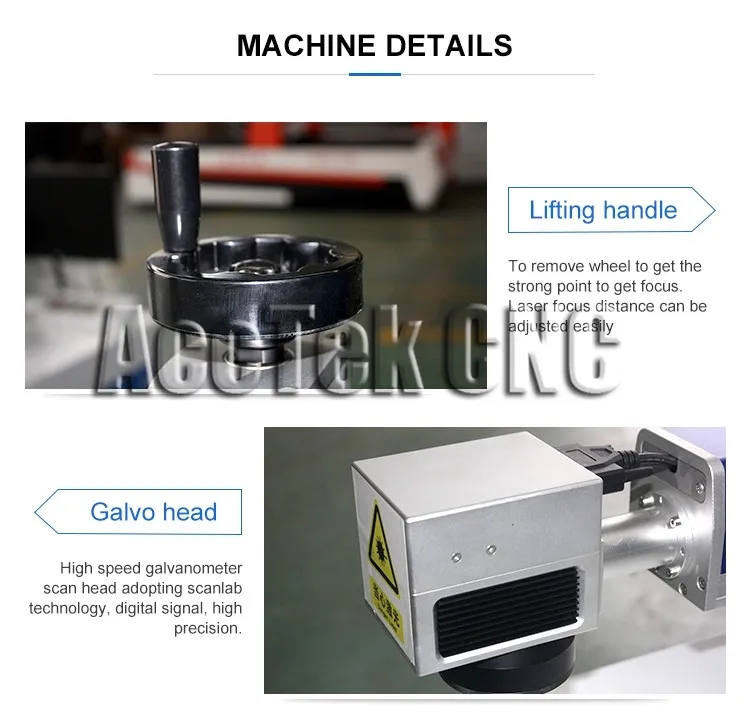

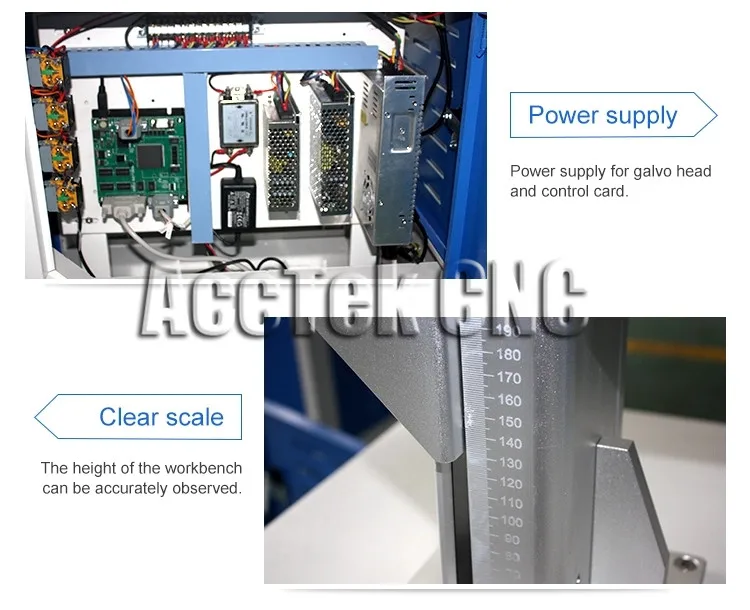

Machine detail:

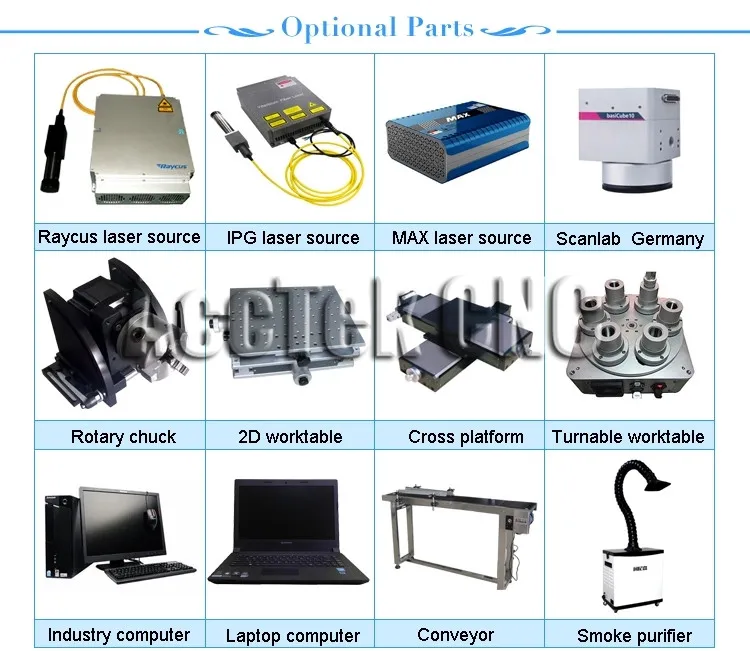

Option parts

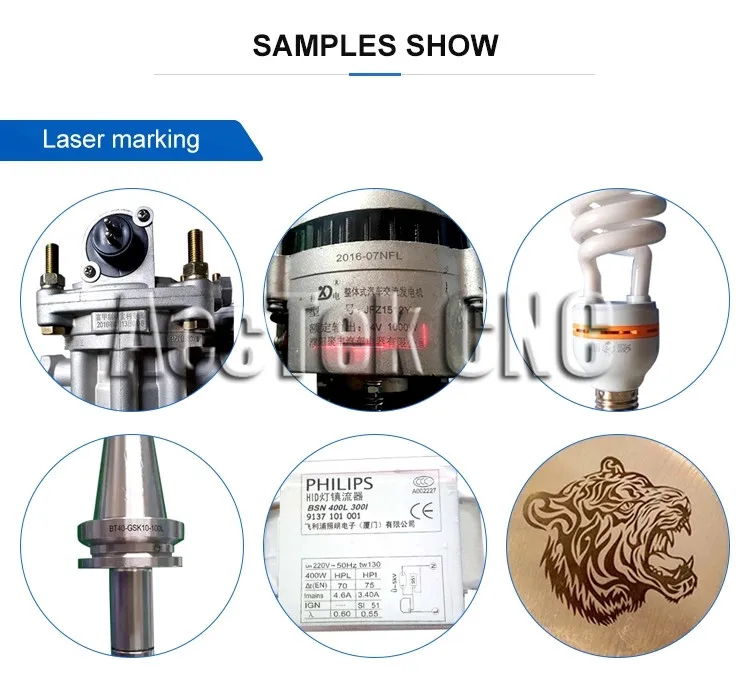

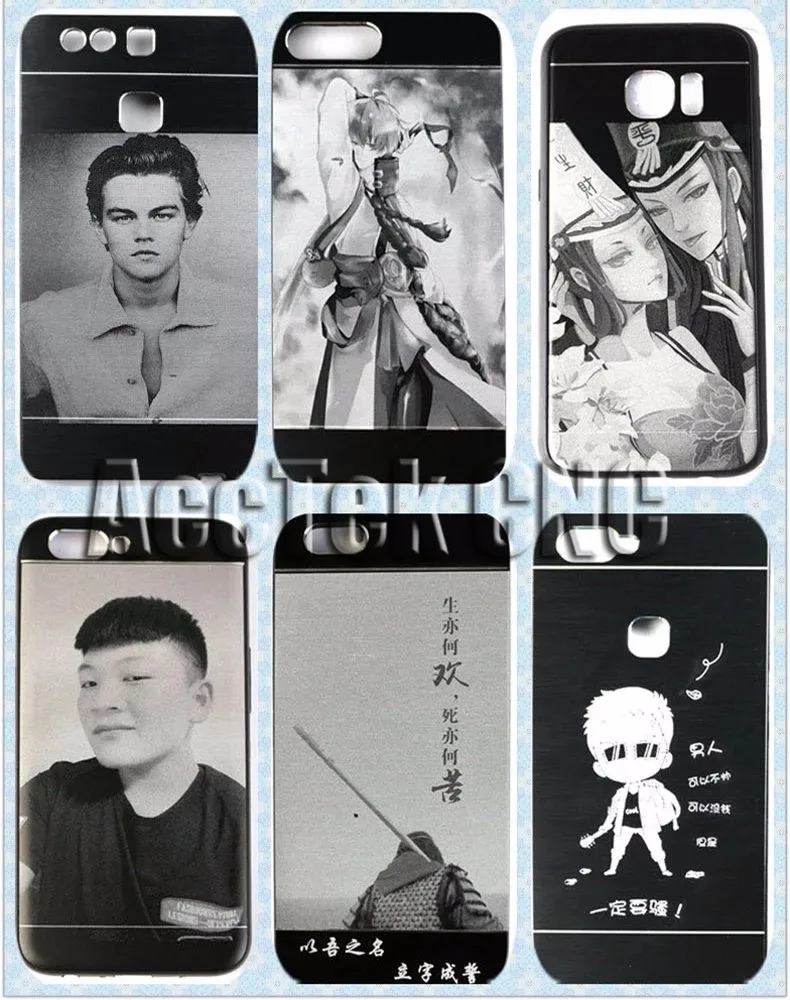

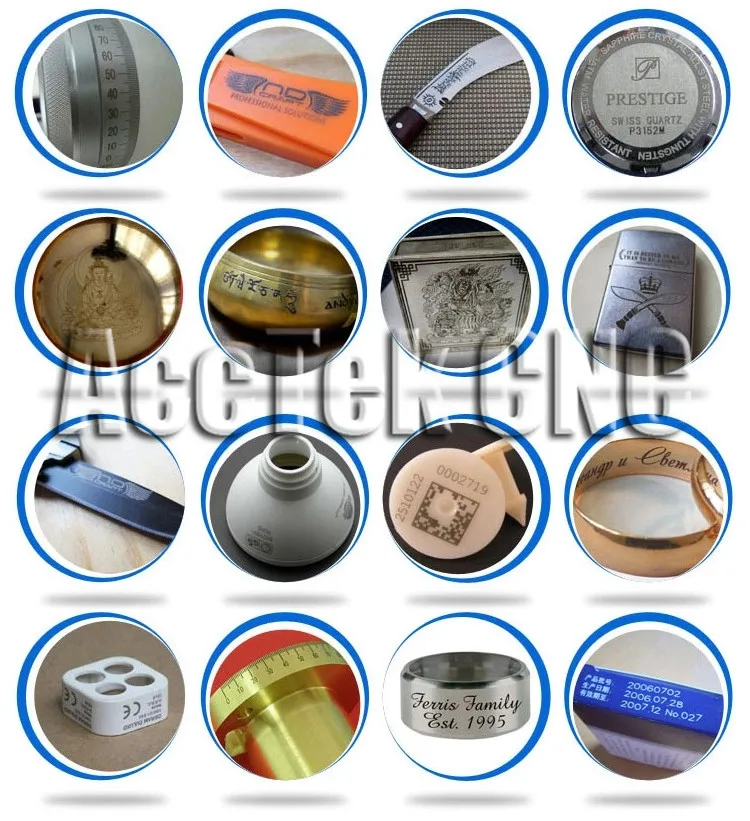

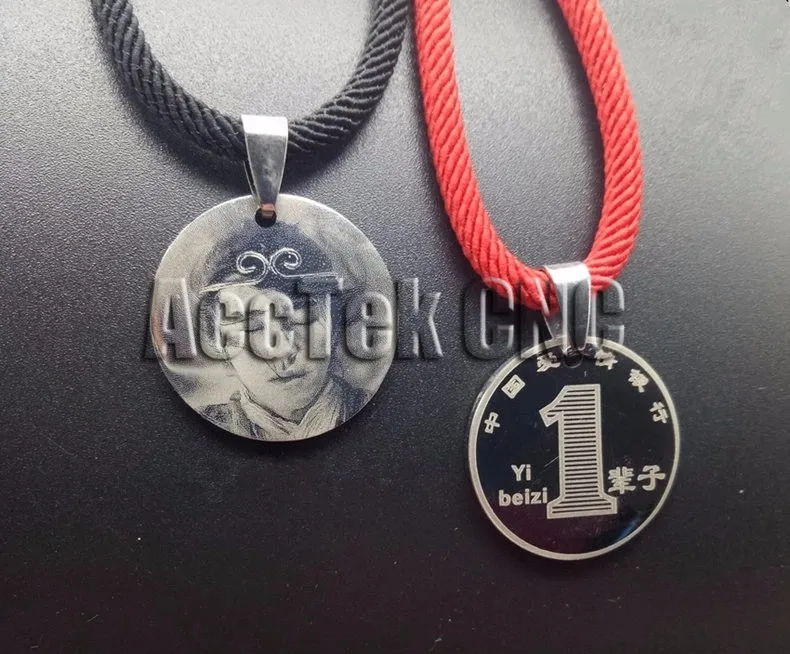

Application
Applied Industries:
| Eletronic components: | resistance, capacitance, chips, printed circuit boards, computer keyboard etc. |
| Apparatus and meter: | panel board, nameplates, panel signs, precision equipment etc. |
Hardware tools: | knives, tools, measuring tools, cutting tools etc. |
| Mechanical parts: | pistons, bearings, gears, shafts, clutch, standard parts, motors, etc. |
| Daily necessities: | cosmetics, labels, handicrafts, zipper, key holder, sanitary ware, eyewear, LED light etc. |
| Digital electronic: | computer, laptop, digital camera, mobile phone and accessories etc. |
| Jewelry: | rings, necklace, earrings, gold, silver etc. |
| Medical: | medical device, surgical instruments, medical packaging etc. |
| Packing: | dishware ,food, beverages, smoking and alcohol, plastic packing bag etc. |
Marking Materials:
| Metals: | gold, silver, brass, sluminium, steel, stainless steel, iron, Iitanium, carbon steel, mild steel, spring steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc. |
| Nonmetals: | rubber, resin, nylon, plastics(PET,HDPE,PP, ABS,PC,PPS,PVC) makrolon etc. |
Marking Contents:
| Graphics: | picture, logo, design, bar code, two-dimension code etc. |
| Text: | character, number, time, serial number, production date, expiry date etc. |
Our after service
1. 18 month quality guaranty, the machine with main parts(excluding the consumables) shall be changed or maintain free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
Package and shipping
1.Inner package: waterproof plastic transparent film
2.Middle package: white foam, to protect the machine from shaking
3.Outside package: wooded case free of fumigation
4.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways
5.The delivery lead time would be 5 days

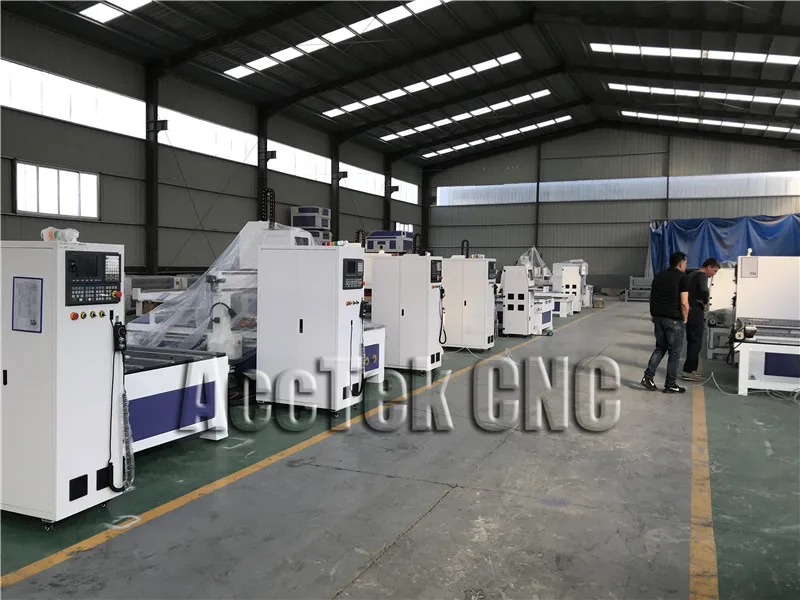

Company information
